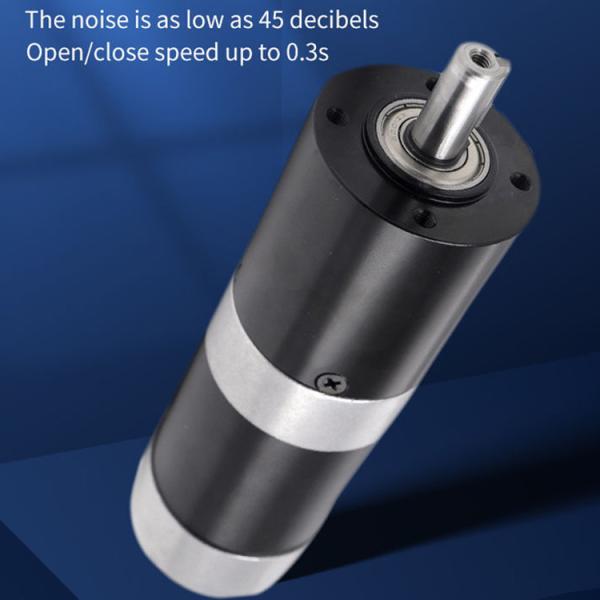

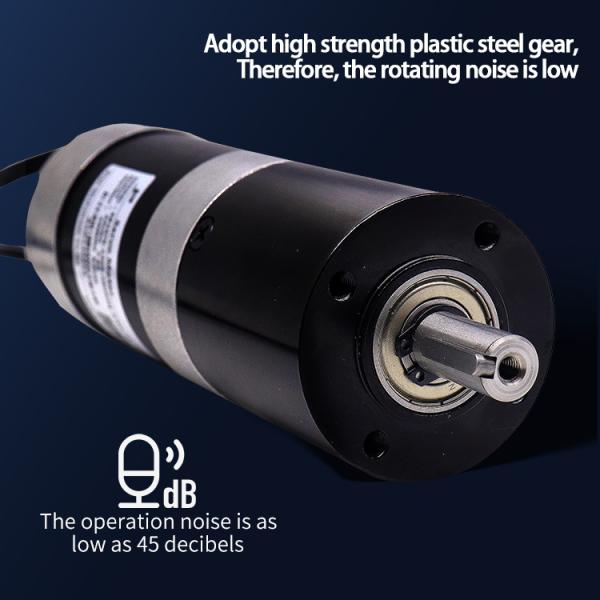

Tripod Turnstile Speed Gate Motors DC 24v permanent magnet motor

  • 1
  • 2

Place of Origin : China

Brand Name : Jiayu

Model Number : EBS57R

Certification : CE

Packaging Details : package

MOQ : 2pcs

Price : Negotiable

Delivery Time : 10-15days after payment

Payment Terms : TT

Supply Ability : 500pcs per month

Data : EBS57R-100A-20CP4E-A5JL-S0-00

Name : SERVO MOTOR

Usage : wing gate turnstile servo motor

Torque : 0.5Nm

Construction : Permanent Magnet

Protect Feature : Drip-proof

Speed(RPM) : 100rpm

Efficiency : IE 2

Nominal Voltage : DC 24V

Nominal Current : 5A

Contact Now

DC 24V 5A dc servo motor for tripod turnstile

Product description

Speed gate turnstile servo motor series are designed to working with swing barrier gate, speed gate and tripod turnstile control pedestrian entering and exiting, adopts 2400 lines encoder, suitable for indoor and outdoor situation, easy to install, and the dc servo motor widely use for applications like stadium, apartment, gym, museum, station, library and factory etc.

Features

►300mm acrylic door panel, opening time up to 0.3 seconds

►Cooperate with the servo vector algorithm, can achieve sensitive anti-pinch protection.

►The Service life is not less than 6 million times. Authoritative appraisal by third party testing institution.

►With servo closed loop control, can achieve 3 times current overload, strong push resistance .

►High-resolution position feedback with 2400 lines can realize accurate positioning.

Our Advantages
Round body, motor and reducer integrated structure, suitable for channel brake movement structure;
motor with 1000 line incremental encoder, the standard and reduction ratio, high precision control is implemented movement;
Specification
item
value
Warranty
3months-1year
Place of Origin
China
Brand Name
JIAYU
Model Number
EBS57R
Usage
Car, FAN, Home Appliance
Certification
ce
Type
SERVO MOTOR
Efficiency
IE 2
Data
EBS57R-100A-20CP4E-A5JL-S0-00
Name
SERVO MOTOR
Nominal Voltage
DC 24V
Nominal Current
5A
Nominal Torque
0.5Nm
Nominal Power
100W
Poles
8
Encoder
1000
Gears
1:20, 1:50
Tripod Turnstile Speed Gate Motors DC 24v permanent magnet motor
Tripod Turnstile Speed Gate Motors DC 24v permanent magnet motor
Tripod Turnstile Speed Gate Motors DC 24v permanent magnet motor

Company profile

Shenzhen Jiayu Mechatronic CO., Ltd, is a high-tech enterprise with multiple invention patents and software copyrights such as servo drive and channel gate control technology. Jiayu is committed to the R&D, production, sales and pre-sales and after-sales service of the core module of the automatic gate control movement. It is a main module supplier in the domestic gate control industry and provides professional product solutions for customers.

Tripod Turnstile Speed Gate Motors DC 24v permanent magnet motor

FAQ

1.Are you Factory or Trader?
we are factory,and have professional R.&D team as introduced in company information.
2.How can we guarantee quality?
Always a pre-production sample before mass production;Always final Inspection before shipment.
3. What can you buy from us?
Access servo drive,speed gate drive,turnstile controller,swing gate drive,barrier gate controller,servo motor,mechanism.
4. Why should you buy from us not from other suppliers?
We are with multiple invention patents and software copyrights such as servo drive and channel gate controltechnology.
Committed to the R&D, production, sales and pre-sales and after-sales service of the core module of the automaticgate control movement.
5. What is your after-sale service?
Free maintance within 12 months guarantee,lifetime consultant,Professional solutions in installation and maintance.
6.Do you get the relevant certifications?
All products are made according to ISO90o1,CE requirements.
7.How about the delivery?
-Sample:3-5days
-Bulk order:15-30 days
